Binary addition or subtraction is carried out as a very basic practice of Half Adders and Full Adders. Further since we know that subtraction is nothing but a complemented addition, we can use the methods of addition for subtractions as well.

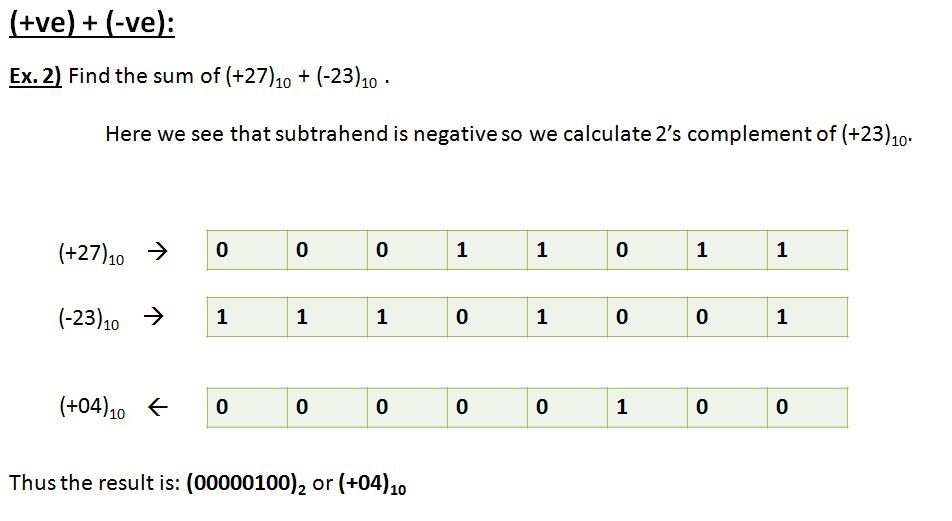

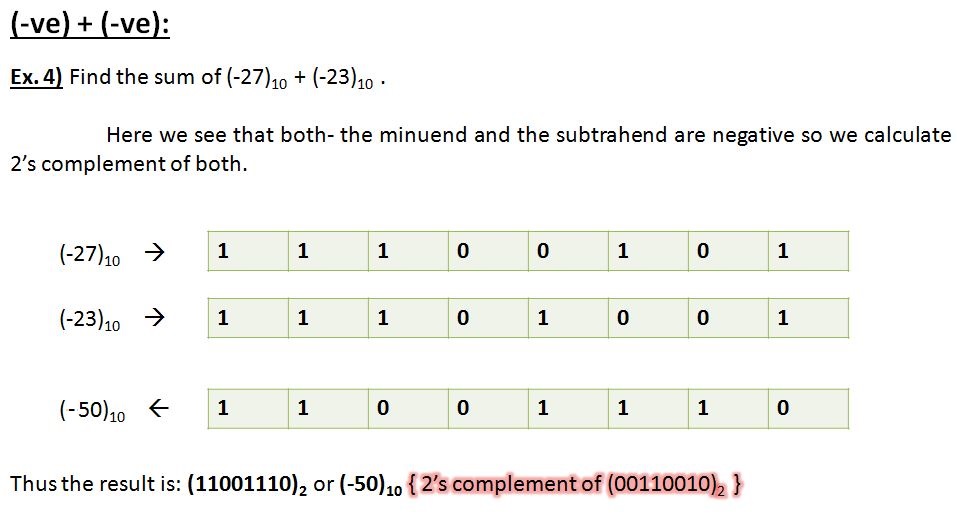

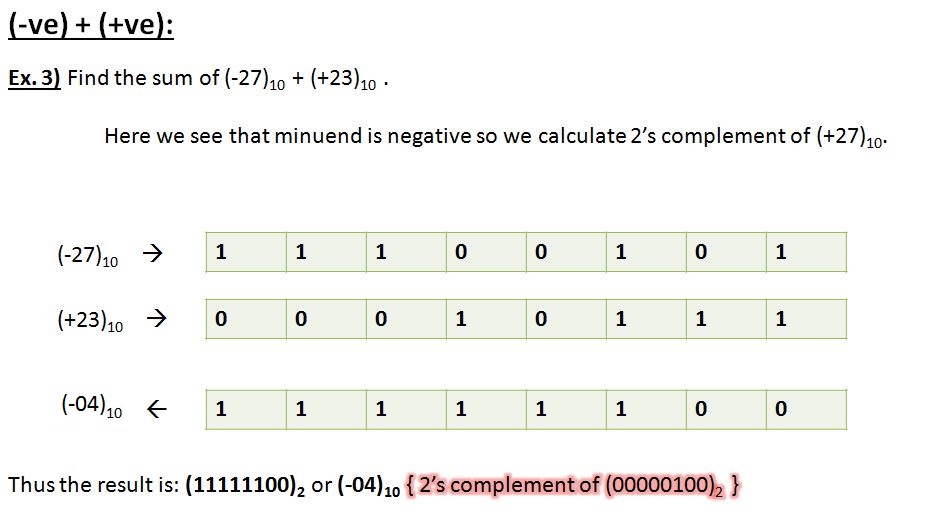

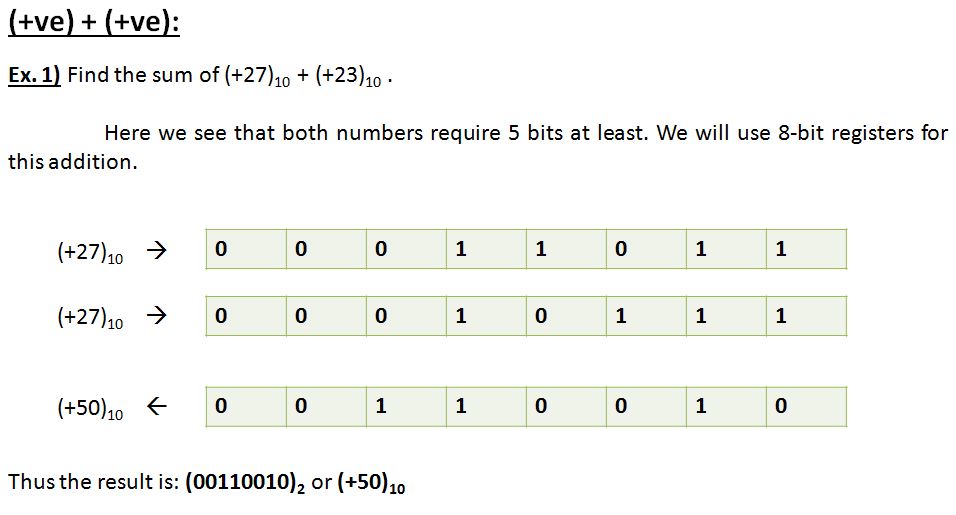

The following figure shows the interrelationships of addition and subtraction methods-

Here it must be kept in mind that the -ve numbers will always be in 2's complement form and to avoid the error caused by overflow during addition operations, registers should be taken of sufficiently larger sizes.
