Flip Flops

A Flip-Flop is a basic electronic circuit that is designed to store a single bit either it is a "0" or a "1". Thus we can say that a Flip-Flop is the smallest unit of an Electronic Memory. Flip-Flops are of a major importance to computer architecture but before we proceed onto the topic, we must understand a LATCH.

Latch

A Latch is a circuit that incorporates two NAND gates in a CROSS-COUPLED connection. This peculiar connection is necessary because the aim is to create a locking system that will be able to lock a single bit in it.

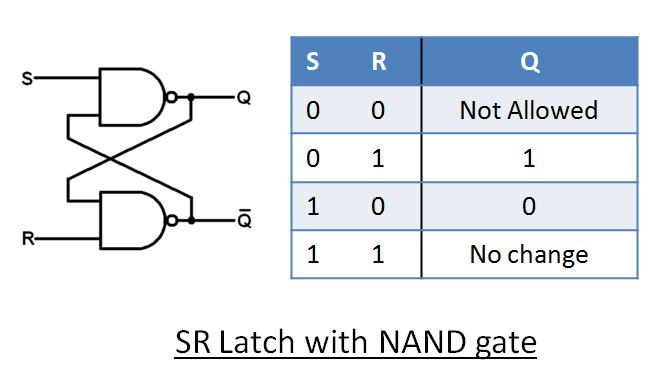

SR Latch with NAND Gate

Note:

A Latch is designed to have two outputs- one is Q while other is Q'. Here Q is regarded as the actual output while Q' is simply to validate the output. For a Latch, to work properly, Q' should always be compliment of Q.
Since in a latch, there is a CROSS-COUPLED connection among gates, we need to assume at the very begining that the Q is 0 and Q' is 1. Having these assumptions, we start operating latches. Here in the truth table, when S=R=1; both Q and Q' tend to be 1 which is logically not allowed.

Flip Flops

A Flip-Flop is nothing but a clocked Latch circuit. Since we use a clock input signal, this circuit becomes able to generate different outputs in different clock periods.

Normally a clock input is either "0" or "1", hence the Flip-Flop is often called as a TWO STATE MULTIVIBRATOR or BISTABLE MULTIVIBRATOR.

Depending upon design, usage and technology, Flip-Flops are categorized into several types. Some of these are listed here:

1. SR Flip-Flop


2. D Flip-Flop


3. JK Flip-Flop


4. T Flip-Flop


5. Edge-Triggered Flip-Flop

SR (Set-Reset) Flip-Flop:

As its name implies, the SR Flip-Flop works for just two states. Either it SETs (stores 1 to the Latch) or it RESETs (stores 0 to the Latch). Although a Flip-Flop can be constructed by any of the two types of Latches, but the best practice is to use NAND gate Latch.

Truth Table:

Up

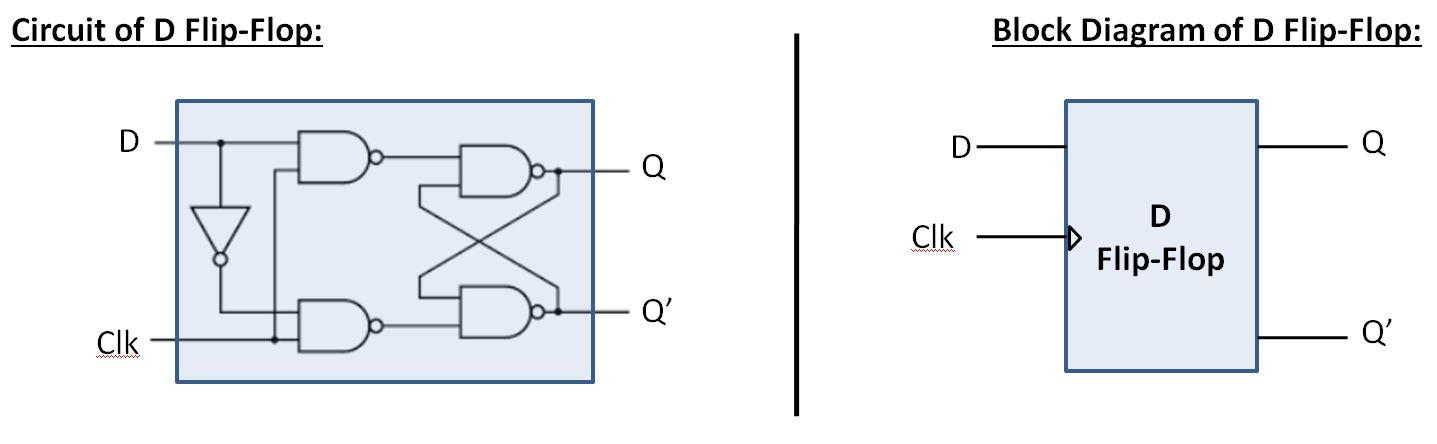

D (Data or Delay) Flip-Flop:

D Flip-Flop is a slight modification of SR Flip-Flop. Since SR flip flop suffers from an unavoidable condition called NO VALUE or RACE CONDITION. D Flip-Flop is designed to avoid it. The D input to this Flip-Flop is sole input and is inverted to create a set of two necessary inputs. This management disables the similar input combinations like [0,0] or [1,1] and only SET, RESET outputs are evaluated.

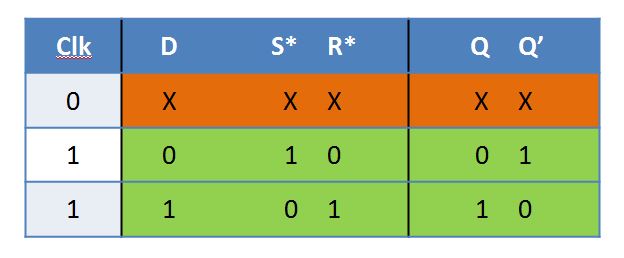

Truth Table:

Up

JK (Jack Kilby) Flip-Flop:

The JK flip-flop is basically an SR flip-flop with feedback which enables only one of its two input terminals, either SET or RESET to be active at any one time thereby eliminating the RACE CONDITION seen previously in the SR flip flop circuit. Also when both the J and the K inputs are at logic level "1" at the same time, and the clock input is pulsed either "HIGH", the circuit will "toggle" from its SET state to a RESET state, or visa-versa.

Truth Table:

Up

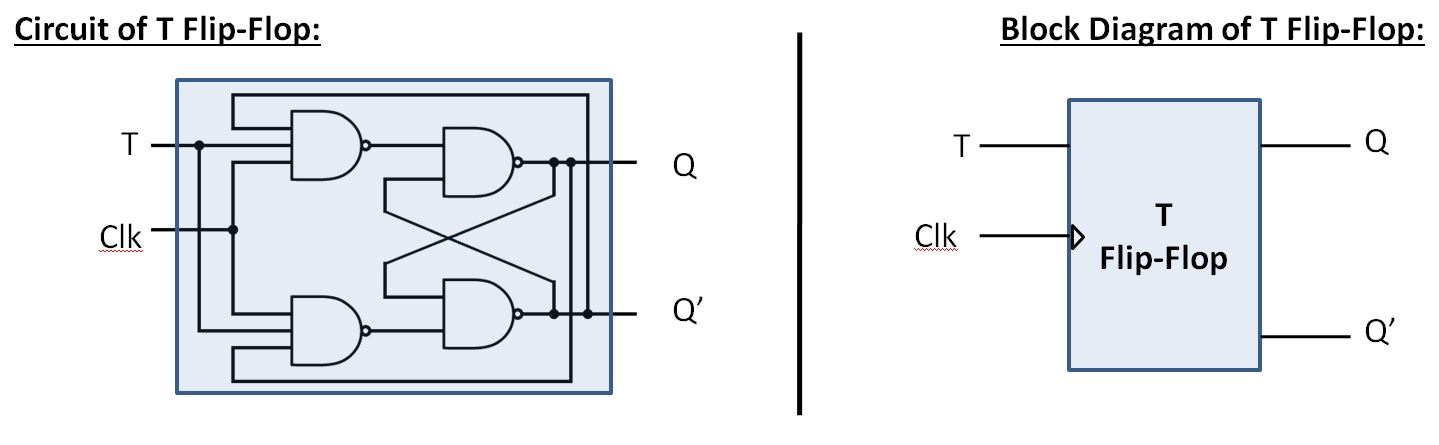

T (Toggling) Flip-Flop:

T Flip-Flop is a slight modification of JK Flip-Flop. The T input to this Flip-Flop is sole input and is distributed to create a set of two necessary inputs. This management disables the differing input combinations like [0,1] or [1,0] and only "NO CHANGE" & "TOGGLE" outputs are evaluated.

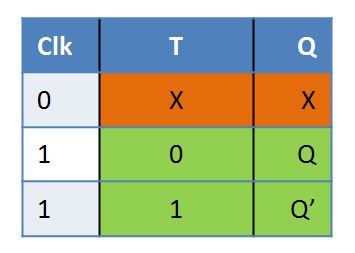

Truth Table:

Up

Edge Triggering:

Edge-Triggering is nothing but a technology through which at least two Flip-Flops can be connected to work on different clock pulses respectively. The First Flip-Flop that gets normal Clock pulse is called a MASTER FLIP-FLOP while the other getting inverted Clock pulse is called a SLAVE FLIP-FLOP. This entire combination is often termed as MASTER-SLAVE FLIP-FLOP.

Block Diagram:

Circuit Diagram:
